Filling Labelling Capping Conveyoring

Entry Level Four head Manual gravity level filler with manual lifting platform

1bi 4HD TT GRV Man lift.png

  • Gravity level Filling principle is used

  • Filling speed of up to 900 bottles per hour on still water in 500ml PET bottle

  • The liquid level in the product hopper is controlled by means of a plastic float valve

  • Machine is manufactured entirely from stainless steel

  • Lifting filling platforms are lifted by hand so no electricity or compressed air is required

  • Filling nozzles are actuated by the containers and therefore have a built in no bottle no fill function

  • Filling level is adjustable

  • The lifting platform is height adjustable for different bottle sizes

  • Unit is available in table top unit or stand alone

  • Machine suitable for 300ml-1500ml




Entry Level Four head Manual gravity level filler with pneumatic lifting platform

1bii 4HD TT GRV Pneu lift.png

  • Gravity level Filling principle is used

  • Filling speed of up to 1200 bottles per hour on still water in 500ml PET bottle

  • The liquid level in the product hopper is controlled by means of a plastic float valve

  • Machine is manufactured entirely from stainless steel

  • Lifting filling platforms are lifted by pneumatic cylinder so compressed air is required

  • Filling nozzles are actuated by the containers and therefore have a built in no bottle no fill function

  • Filling level is adjustable

  • Neck handling is used so with the same neck size PET bottle different bottle sizes can be handled without any adjustments

  • Unit is available in table top unit or stand alone

  • Machine suitable for 300ml-1500ml

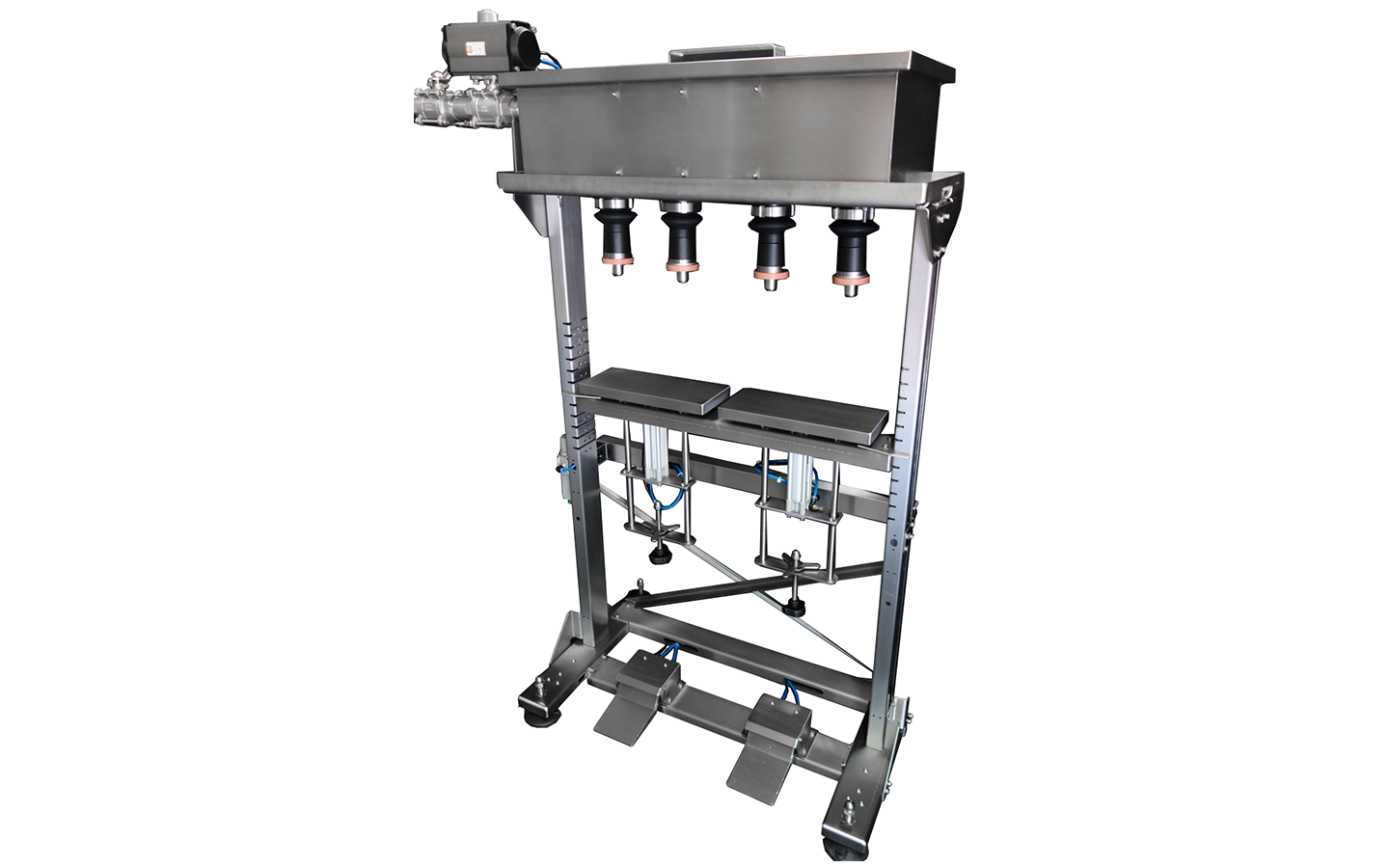

Four head Manual gravity level filler with pneumatic lifting platform

1biii 4HD GRV filler.png

  • Gravity level Filling principle is used

  • Filling speed of up to 1200 bottles per hour on still water in 500ml PET bottle

  • The liquid level in the product hopper is controlled by means of an Actuated Butterfly or Ball Valve

  • Machine is manufactured entirely from stainless steel

  • Lifting filling platforms are lifted by pneumatic cylinder so compressed air is required

  • Filling nozzles are actuated by the containers and therefore have a built in no bottle no fill function

  • Filling level is adjustable

  • The lifting platform is height adjustable for different bottle sizes

  • Machine suitable for 300ml-5000ml
